For large scale H2 storage & distribution solutions

BENEFITS

• Customized storage solutions and ease of installation

·       Complete & Autonomous Storage module

·       Modular design  & Flexible size ： Scalable solution for 20 to 40 ft Container

• Lightweight solution reducing H2 transport TCO & CO2 emission

·       Higher storage capacity due to full composite tank allowing high Working pressure

·       Increased lifetime thanks to Corrosion-free liner

·       Fuel costs savings thanks to lighter vessel thanks to Carbon Fiber composite

·       Standard solution for any logistic means: on-road, rail, marine

TECHNICAL DESCRIPTION

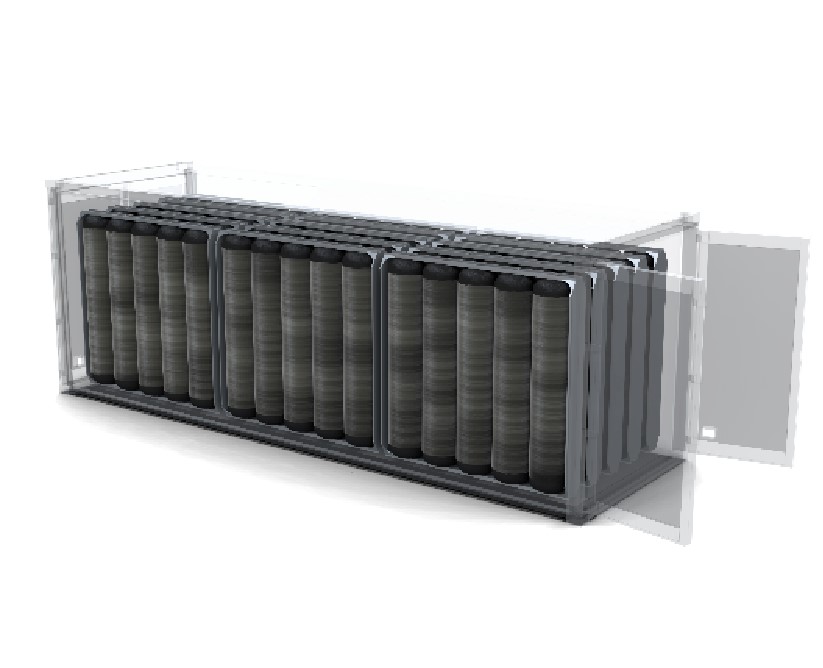

• Modular design built on the basis of type IV lightweight tanks with customer specific cabinet for fueling and defueling

·       Corrosion-free PA liner allowing NWP over 35 MPa

·       Optimized sub-modules (augmented tank size) to reduced number of auxiliaries

·       Scalable solution for 20 to 40 ft Container

 · Product range

·       Container size= 20- ft / 40-ft modules

·       Storage capacity up to 1-ton usable H2

• Homologation

·       Depending on the use cases - homologated according ADR / TPED / RID / IMDG

APPLICATIONS

• Maturity Level: TPED approval by Q1-24



• Vehicle / Segment: Distribution (virtual pipelines, refueling stations), Mobility (Rail & Marine applications) , Stationary usages (Data centers, Telecom, Backup power)



• Footprint:  Worldwide
